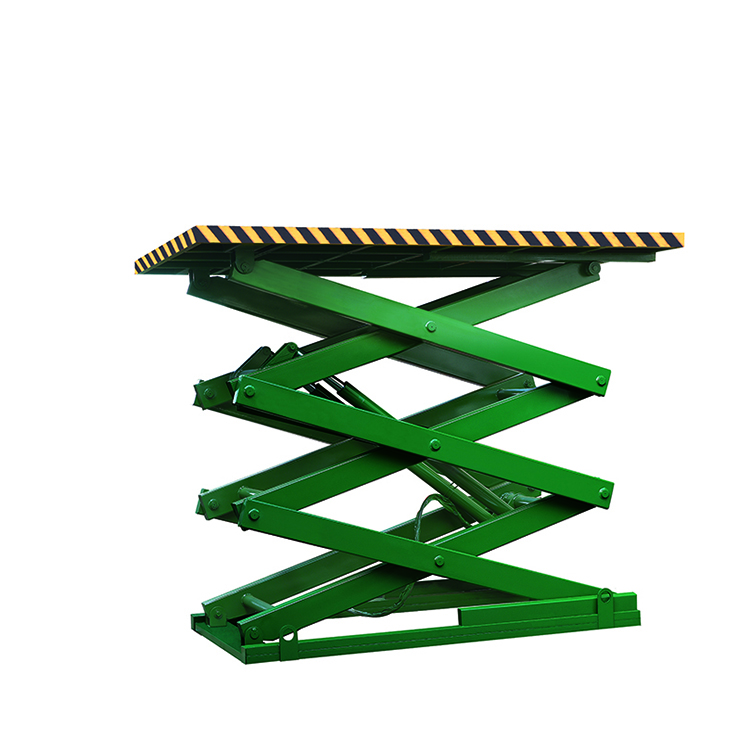

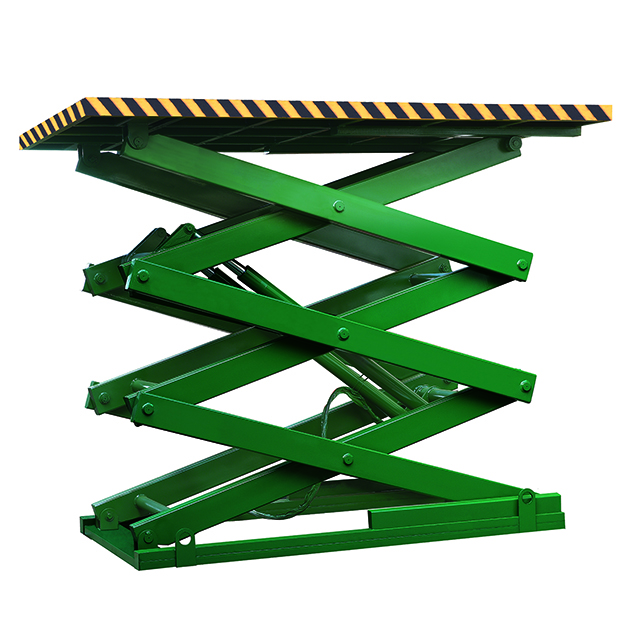

SJG multi-layer scissor fixed hydraulic lifting platform is mostly used for cargo transportation between production line height differences, material on and off the line, adjustment of working height during workpiece assembly, feeding of loading machines at high places, parts lifting during large equipment assembly, storage and loading and unloading places and forklifts And other transport vehicles to support the rapid loading and unloading of goods, etc.
● Equipped with safety devices to prevent the lifting platform from overloading;
● Equipped with a protection valve to prevent hydraulic oil pipe rupture;
● Equipped with emergency descending device for sudden power failure.
| Model | Load capacity(kg) | Lifting height(mm) | Maximum height(mm) | Low height(mm) | Platform size(mm) | Lifting time(s) |
| SJG1-3 | 1000 | 3000 | 3540 | 540 | 2300×2000 | 30 |
| SJG2-3 | 2000 | 3000 | 3600 | 600 | 2300×2000 | 30 |
| SJG3-3 | 3000 | 3000 | 3600 | 680 | 2300×2000 | 30 |
| SJG1-4 | 1000 | 4000 | 4630 | 630 | 2000×2000 | 40 |
| SJG2-4 | 2000 | 4000 | 4720 | 720 | 2000×2000 | 40 |
| SJG3-4 | 3000 | 4000 | 4780 | 780 | 2000×2000 | 40 |
| SJG1-5 | 1000 | 5000 | 4750 | 750 | 2000×2000 | 60 |
| SJG2-5 | 2000 | 5000 | 5860 | 860 | 2000×2000 | 60 |
| SJG3-5 | 3000 | 5000 | 6030 | 1030 | 2000×2000 | 60 |
| SJG1-6 | 1000 | 6000 | 6970 | 970 | 2000×2000 | 70 |
| SJG2-6 | 2000 | 6000 | 7100 | 1100 | 2000×2000 | 70 |
| SJG3-6 | 3000 | 6000 | 7120 | 1210 | 2000×2000 | 70 |
| SJG1-9 | 1000 | 9000 | 10250 | 1250 | 2500×2000 | 100 |
| SJG2-9 | 2000 | 9000 | 10390 | 1390 | 2500×2000 | 120 |
